Use clustermode

What is clustermode?

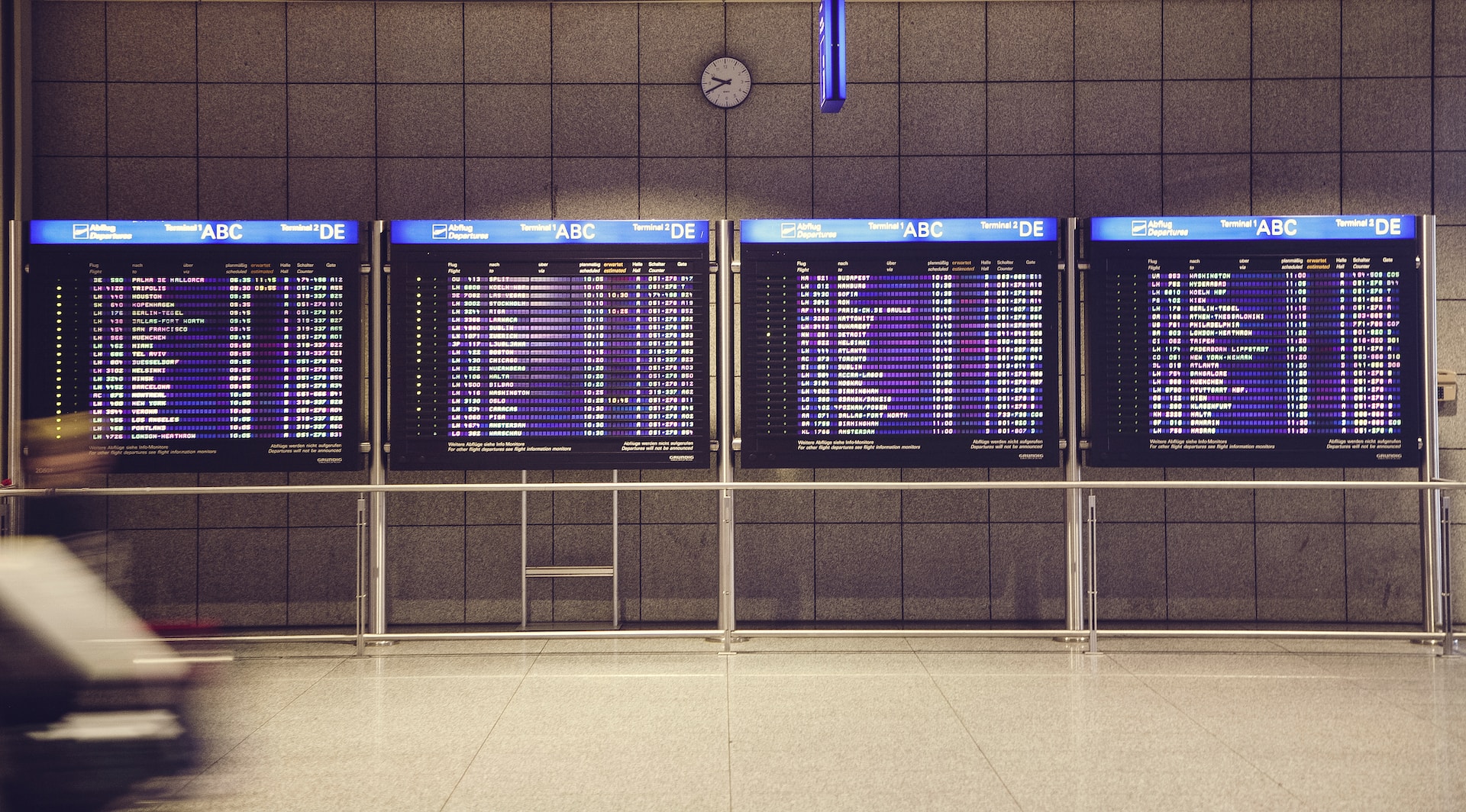

Clustermode lets multiple displays work together to render a single app's data. Imagine a long list of appointments that doesn't fit on one display — clustermode spreads the appointments across multiple displays so viewers see more at once.

Setting up clustermode

If you've found a use case for clustermode in a specific app, you need some extra configuration.

1. Enable clustermode inside the app you want to use. Some apps have extra clustermode-specific settings — refer to the app's own guide if you're unsure what they mean.
2. Configure the displays to use this app:

   1. Go to Displays in Lumicast.

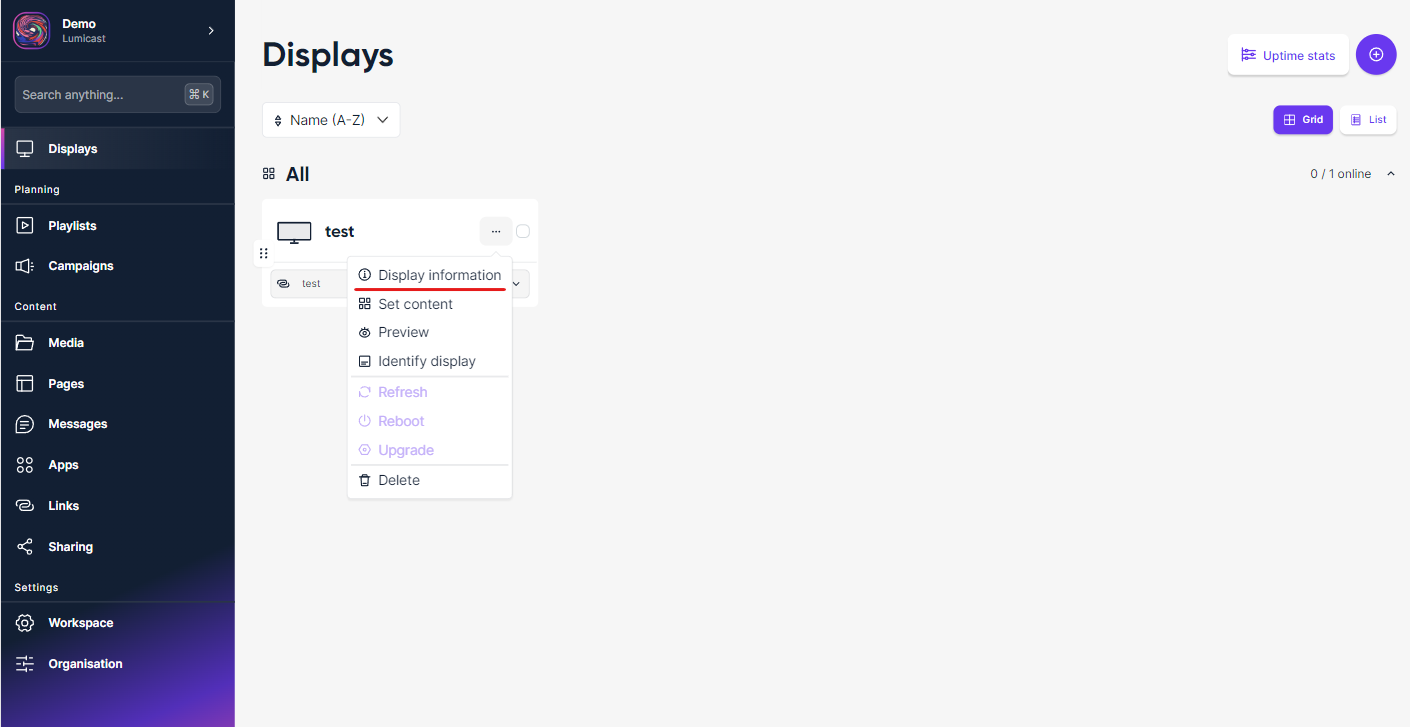

   2. Open the menu of the display and click Display information:



   3. In the menu on the left, under Configuration, open General.

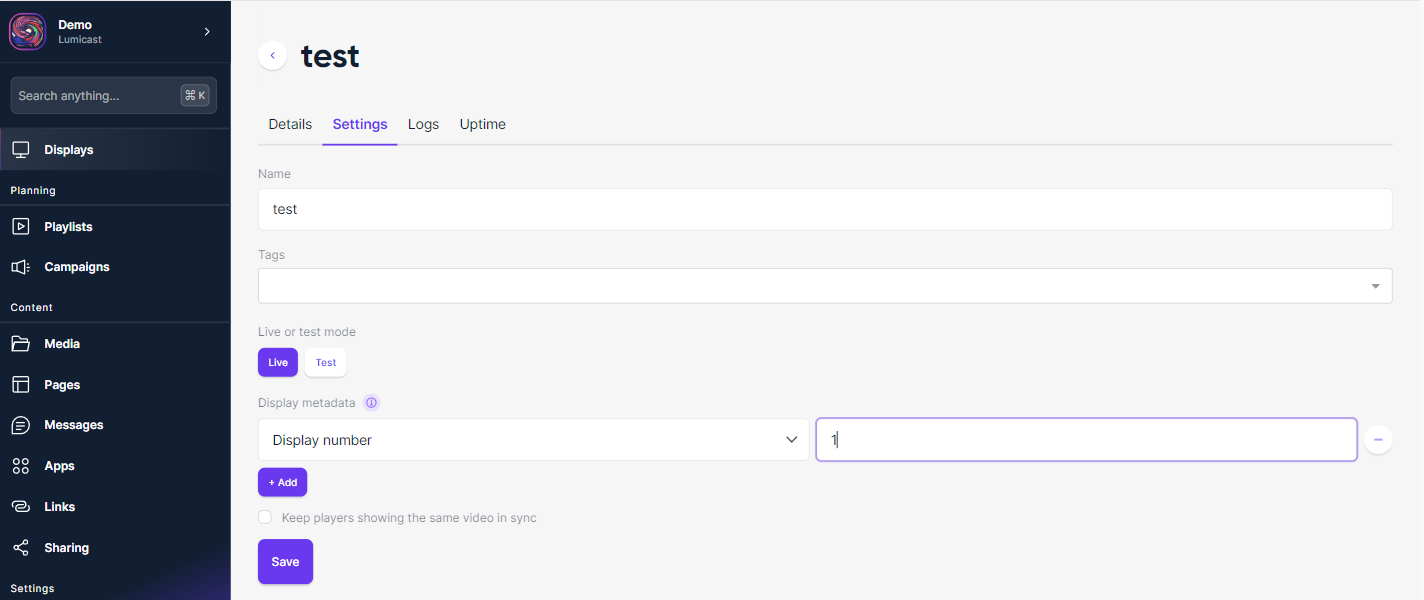

   4. Under Metadata, click + Add and select Display number. Enter the number of this display — e.g. if you have five displays, give the first one 1:



   5. Click Save.

3. Repeat for every display in the cluster. Finally, make sure the app is selected to play on each display.
